Description

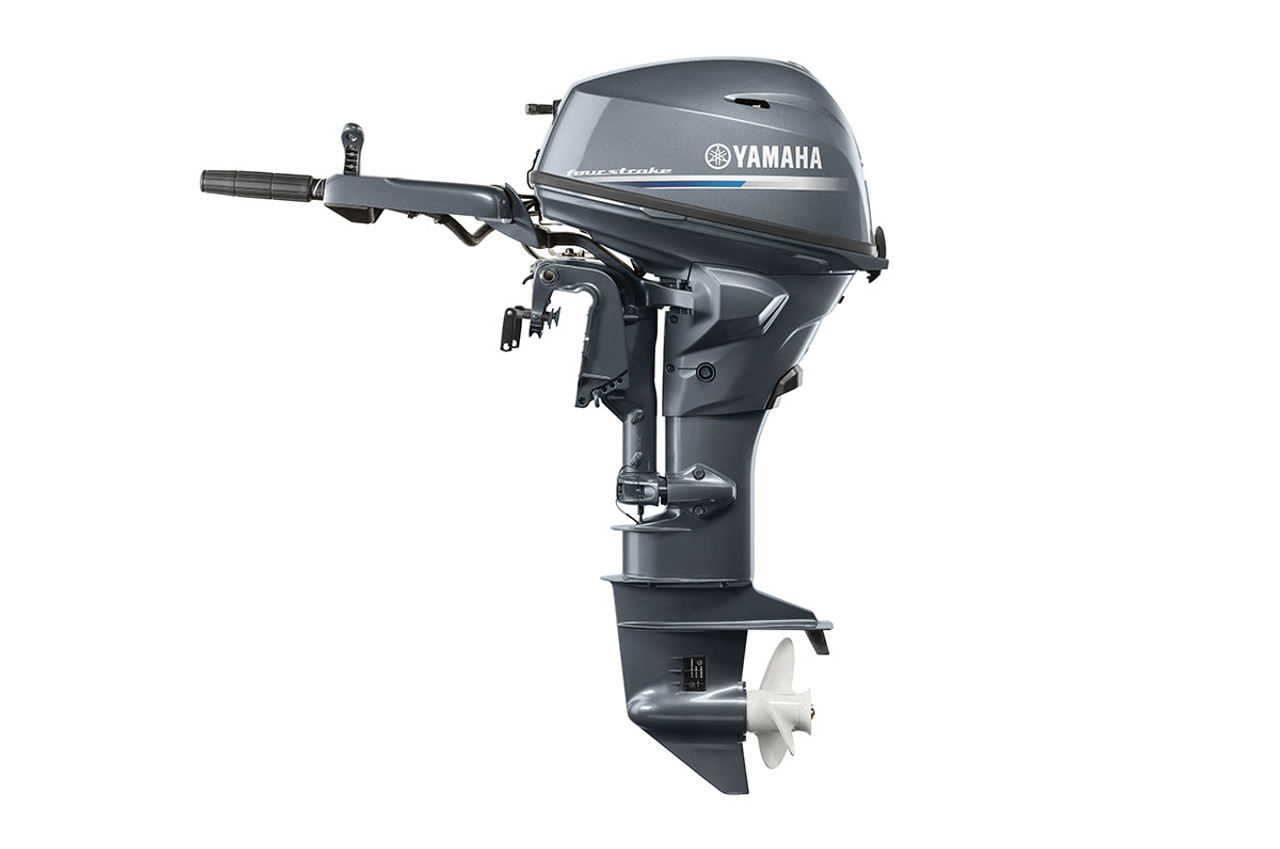

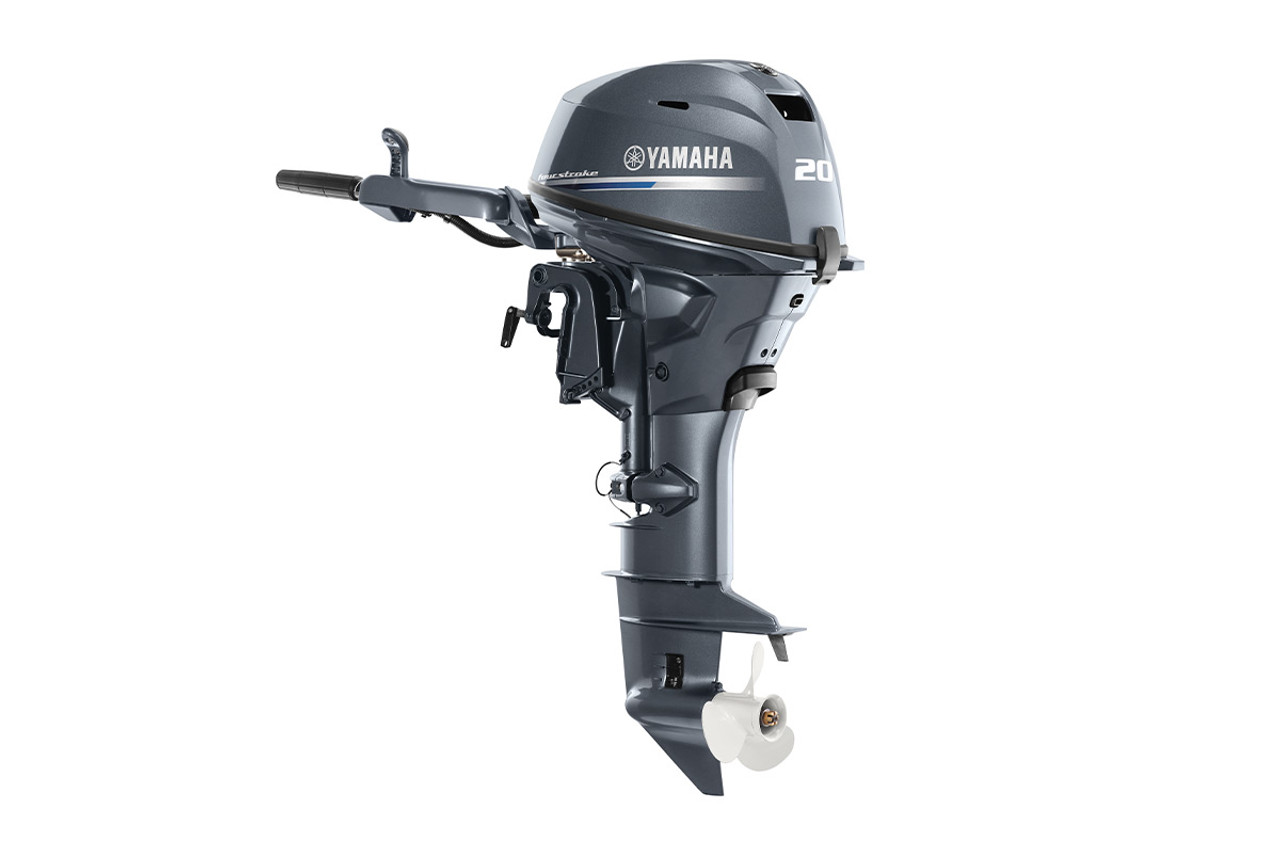

Yamaha 20hp Outboard | F20SWHB
Yamaha’s 432cc all-new 20hp portable outboard-built on the same award winning platform as the F25 and sharing its SOHC in-line design and streamlined intake manifold, delivers solid power. Not only that, but it’s one of the most fuel efficient in its class. At just 126 pounds, it’s suitable for lightweight craft such as aluminum fishing boats, tenders and inflatables.
Key Features
Max Maneuverability: A 45-degree steering angle in each direction means great maneuvering potential.
Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
Portability and Storage: Incredible light weights, built-in resting pads and carry handles, an easy oil rentention system and an optional folding tiller handle, allow for easy carrying and on-side storage without oil leakage or cowling scuffs.
Motor Specifications
-
- Engine Type: Yamaha F20SWHB Four Stroke
- Horsepower: 20hp
- Cylinders: 2 cyl
- Shaft Length: 15″ Short
- Steering: Tiller
- Starter: Electric + Manual
- Weight: 132 lbs
- Alternator Output: 16 amp
- Degree of Tilt: 62°- 63°
- Degree of Trim: -3° through +16°
- Full Throttle Range: 5000 – 6000 rpm
- Displacement: 432cc
- Fuel Induction System: Electronic Fuel Injection (EFI)
- Warranty: Yamaha 3-Year Warranty
Standard Features
-
- Aluminum Propeller
- Fuel Line
- Safety Lanyard
- Owner’s Manual
