Description

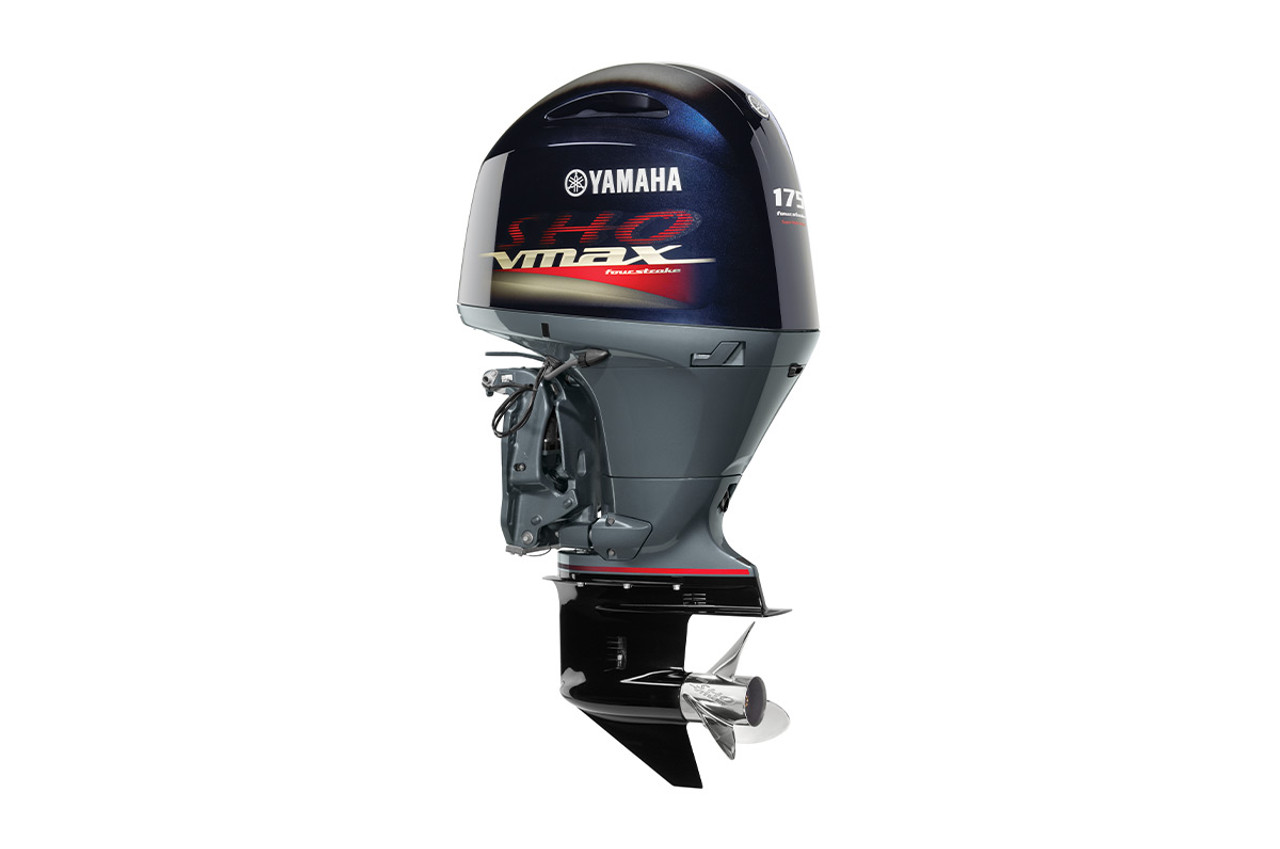

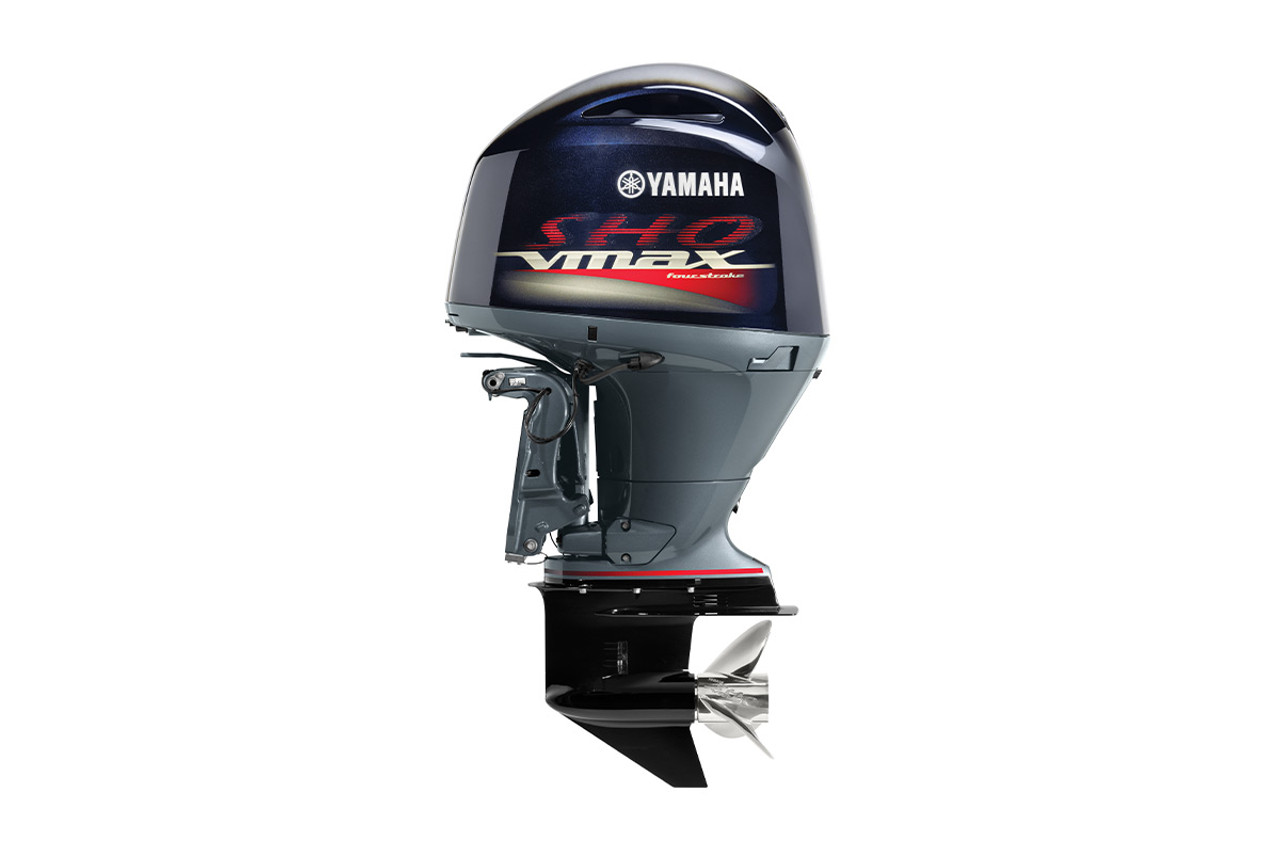

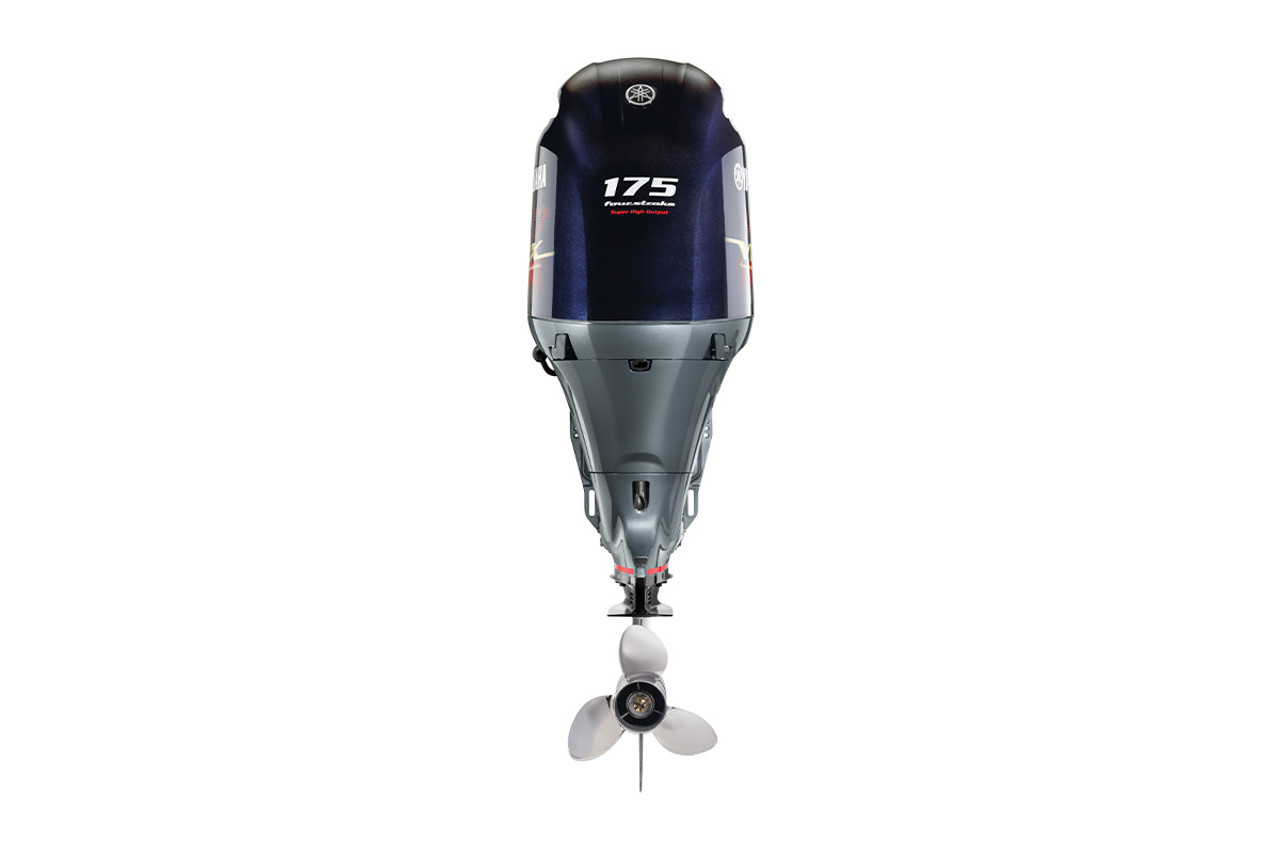

Yamaha 175hp V Max Sho Outboard | VF175XB
The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs. Overall, this series of 1.8- and 2.8-liter dynamos features a surprising tech package with 16 valves, single- or double-overhead cams and electronic fuel injection—for maximum efficiency and high performance. This makes the I-4 V MAX SHOs perfect for smaller bass, flats and bay boats and other performance hulls. With the option of a 25-inch shaft for all of our I-4 V MAX SHO outboards, anglers prowling big waters on multi-species, bay and flats boats have a competitive edge that runs deeper than ever.
Lean and mean, the I-4 V MAX SHO® 175 delivers exhilarating hole shot and class-leading top speed.
Key Features
Extra Space: A four stroke in-line design means there’s no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear.
Ample Charging Power: With 50 amps for the I-4 V Max Sho 175, the alternators produce enough power for battery charging and a range of on-board electronics.
Easy Rigging: I-4 V MAX SHO® outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analog, 6Y5 digital or Command Link® gauges.
Motor Specifications
-
- Engine Type: Yamaha VF175XB V Max Sho Four Stroke
- Horsepower: 175hp
- Cylinders: 4 cyl
- Shaft Length: 25″ X-Long
- Steering: Remote Mechanical
- Starter: Electric
- Weight: 489 lbs
- Alternator Output: 50 amp
- Degree of Tilt: 70°
- Degree of Trim: -4° through +16°
- Full Throttle Range: 5000 – 6000 rpm
- Displacement: 2.8L
- Fuel Induction System: Electronic Fuel Injection (EFI)
- Warranty: Yamaha 3-Year Warranty
Standard Features
-
- Power Trim & Tilt
- Owner’s Manual
