Description

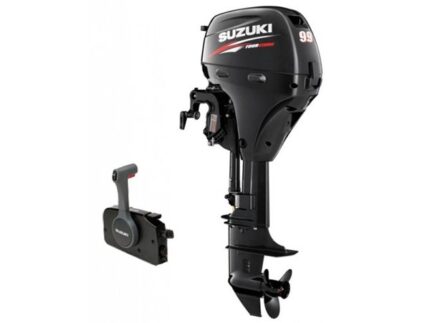

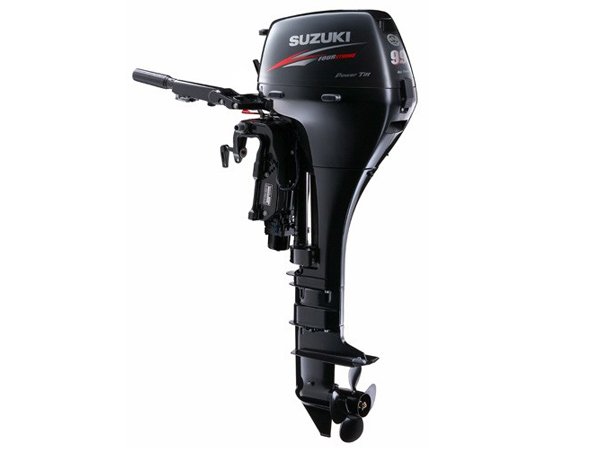

Suzuki 9.9 HP DF9.9BTHS Outboard Motor
The new Suzuki 9.9 HP EFI outboard motor model DF9.9BTHS is a 15 inch short shaft, electric start, power tilt and electronic fuel injection. The Suzuki 9.9 HP outboard engine is lightweight, compact and fuel efficient. This 2-cylinder 4-stroke is remarkably smooth and quiet. The Suzuki 9.9hp outboard is an excellent choice for short shaft jon boats and skiffs, as well auxiliary power for sailboats and “kickers” for larger fishing boats. Suzuki designed the 9.9hp with user-friendly features such as the multi-function tiller handle which controls steering, throttle, throttle tension, and power tilt. Additionally, a one-touch steering tension control lever located on the front of the engine allows the user to quickly adjust steering friction.
Suzuki 9.9 HP DF9.9BTHS Outboard Motor
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest EFI Outboard in 9.9hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Power Tilt
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Up to 17% more fuel efficient over
- some competitor’s 4-strokes
- Suzuki 3-Year Warranty
Suzuki 9.9 HP DF9.9BTHS Outboard Motor
| Model | DF9.9BTHS |
| Model Year | No |
| SKU | DF9.9BTHS-17 |
| Weight | 120.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 9.9hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Power Tilt |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 327 cc (20.0 cubic inches) |
| Bore and Stroke | 60.4 x 57 mm (2.38 x 2.24 inches) |
| Full Throttle RPM Range | 5000-6000 RPM |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| Oil Type | SAE 10W-30 or SAE 10W-40 |
| Oil Capacity | 33.8 fl oz. (1000 mL) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | 12V 145W 12A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
| Propeller | 3-Blade Aluminum 9.25″ Dia x 10″ Pitch |
| Internal Battery | No |
Suzuki 9.9 HP DF9.9BTHS Outboard Motor
What’s in the box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
