Description

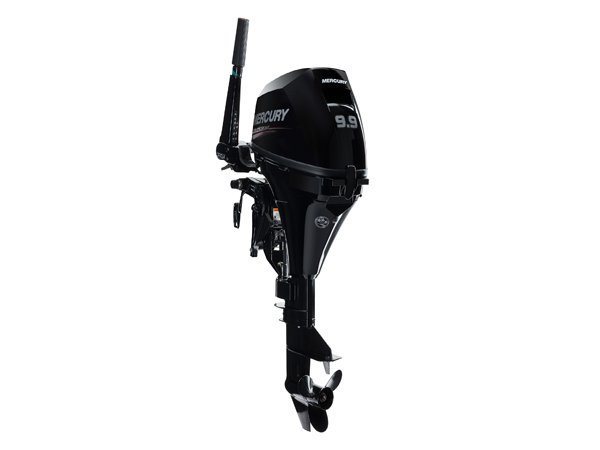

2018 Mercury 9.9 Hp 9.9EH Outboard Motor
The portable 9.9hp Mercury outboard motor is lightweight, compact, and powerful making it a great choice for jon boats, skiffs, and small pontoons as well as sailboat or trolling power. The Mercury 9.9 HP outboard engine is a two cylinder four stroke outboard that delivers quiet, fuel efficient power with Mercury reliability. The Mercury 9.9 HP Outboard Model #: 9.9EH comes equipped with an electric start and a 15 inch shaft, auto ratchet tilt and trim, Mercury multi-function tiller control, and Mercury 3 year factory warranty.
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
- Compact and Lightweight
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
| MODEL | 9.9EH |
| MODEL YEAR | 2018 |
| SKU | 9.9EH-18 |
| WEIGHT | 91.0000 |
| MANUFACTURER | Mercury |
| COUNTRY OF MANUFACTURE | Japan |
| HORSEPOWER | 9.9hp |
| SHAFT LENGTH | 15″ (Short) |
| STEERING | Tiller |
| STARTING | Electric |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | External |
| CYLINDER(S) | 2 |
| DISPLACEMENT | 208 cc (12.8 cubic inches) |
| BORE AND STROKE | 55 x 44 mm (2.16 x 1.73 inches) |
| FULL THROTTLE RPM RANGE | 5000-6000 |
| IGNITION SYSTEM | Digital CD Ignition w/Electronic Spark Advance |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | 87 Octane (up to 10% ethanol content) |
| FUEL TANK / FUEL LINE | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| OIL TYPE | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| OIL CAPACITY | 27 fl. Oz. (800 ml) |
| LUBRICATION | Trochoid Pump |
| ALTERNATOR | 12V 76W 6A (standard on electric start models) |
| COOLING SYSTEM | Water-Cooled, Thermostatically Controlled |
| SALTWATER RATED | YES |
| GEAR RATIO | 2.08:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (shift in tiller handle) |
| PROPELLER | 8.5″ Diameter X 9.0″ Pitch 3-Blade Aluminum |
| INTERNAL BATTERY | No |
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
WHAT’S IN THE BOX?
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
