Description

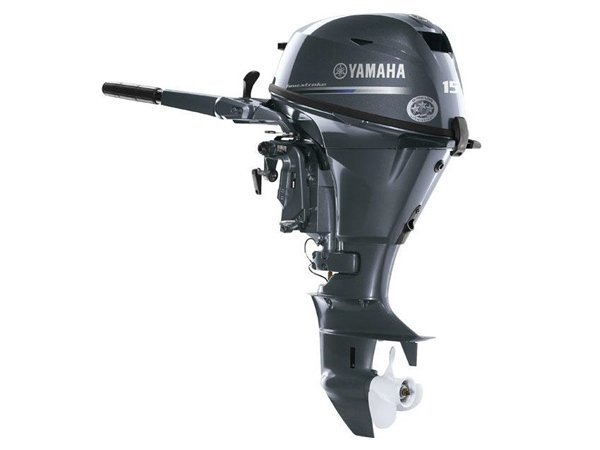

2017 Yamaha F15 SMHA Outboard Motor
For those who want power, performance and portability
The sun just broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender. Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.
2017 Yamaha F15 SMHA Outboard Motor
- SOHC
- Large Displacement Engine
- Streamlined Intake Manifold
- Large Volume Air Silencer
- Labyrinth Exhaust
- Water-Cooled Fuel Pump
- Acceleration Pump
- Long Span Mounting System
- Four Stroke Engine Design
2017 Yamaha F15 SMHA Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name F15
Trim Name SMHA
Generic Type (Primary) Four Stroke
Engine
Engine Type 2 Cylinder
Engine Power 15 hp @ 5500 rpm
Alternator (Output): 10A **
Displacement 22.1 ci (362 cc)
Gear Ratio (Primary) (27:13) 2.08:1
Lubrication Wet sump
Fuel Type Induction: SOHC
Ignition System: CDI Micro Computer
Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)
Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)
Spark Plug
Spark Plug DPR6EB-900-000
Range
Note Full Throttle RPM Range: 5000-6000
Dimensions
Length Shaft: S=15″
Bore 2.48 in. (63 mm)
Stroke 2.29 in. (58.1 mm)
Weights
Dry Weight F15SMHA = 50kg (111 lbs)
Capacities
Oil capacity 1.8L/1.6L w/without filter
Features
Compression Ratio 9.3:1
Features Degree of Tilt: 67°-71° | Degree of Trim: 4 positions
Exhaust Through Propeller
Weight Spec: 2
Note Ethanol Blend Limit: 10% Maximum
Note Gear Shift: Forward, Neutral, Reverse
Features C.A.R.B. Rating: 3 Star
Steering Angle (Maximun): 45° from center, either direction
Cooling Water/Thermostatic Control
Note Mounting Centers: 28.6″
Intake Design Carburetor
Starter Manual or Electric
Warranty
Warranty 3 Year Limited Pleasure Boat – 1 Year Limited Commercial
